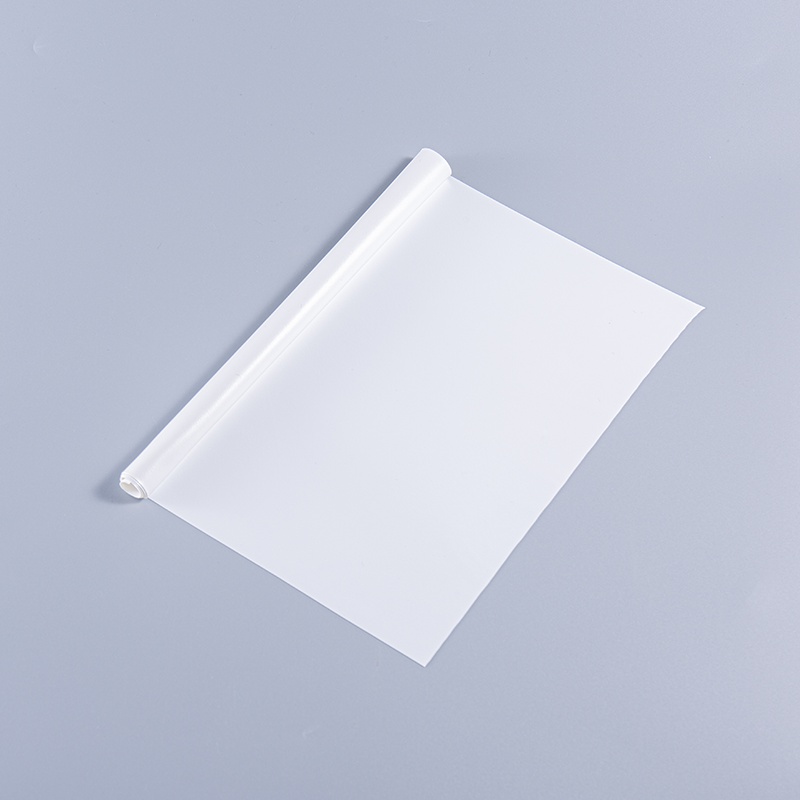

ATL PVB PHOTOVOLTAIC White Reflective Series

The Photovoltaic White Reflective PVB interlayer film series is specifically designed for high-efficiency BIPV and backsheet-integrated PV glass modules. Utilizing advanced ceramic-grade titanium dioxide pigmentation and a precision-balanced resin matrix, this series offers exceptional visible light reflectance and near-zero transmittance. It enhances rear-side light recycling in bifacial and semi-transparent modules, boosting power generation efficiency. Its thermally stable formulation ensures long-term durability under harsh outdoor environments.

Quote Now

Specification

Product Features:

High Reflectivity: Over 90% total reflectance in the visible spectrum, improving rear-side light utilization in PV modules.
Ceramic White Appearance: Clean, bright, and uniform matte white finish suitable for architectural aesthetics and functional solar applications.
Excellent UV and Weather Resistance: Long-term exposure stability, with minimal yellowing or chalking.
Low Light Transmission: Effectively blocks unwanted light leakage in glass-glass modules, enhancing insulation and power output.
Strong Adhesion and Encapsulation Compatibility: Compatible with EVA, POE, and PVB-based laminates.

Typical Properties：

PROPERTY	TEST METHOD	UNITS	TEST CONDITIONS	TYPICAL VALUE
Total Reflectance	ASTM E1348	%	400–780 nm	≥ 92
Light transmission	EN 410	%	-	< 1
Haze	ASTM D1003	%	-	> 99
UV Blocking Rate	ISO 9050	%	-	> 99.9
Whiteness Index	ASTM E313	-	-	≥ 92
Thermal Shrinkage	Internal Method	%	120°C, 15 min	≤ 5
Moisture content	NIR	%	-	0.38
Adhesion to glass	Internal Method	N/cm	180° peel, 25°C	40 – 55
Weathering Resistance	GB 15763.3-2009	-	Xenon 3000h	PASS (ΔYI < 3)
